| Conductor Material |
| Aluminum 8000 Series |
| Insulation Material |
| Water-Resistant Cross-Linked Polyethylene |
| Voltage Rating |
| 5-46kV |
| Number of Conductors |
| 95 |
| Conductor Size |
| 4/0 AWG (107mm²) |
| Insulation Material |
| Water-Resistant Cross-Linked Polyethylene |

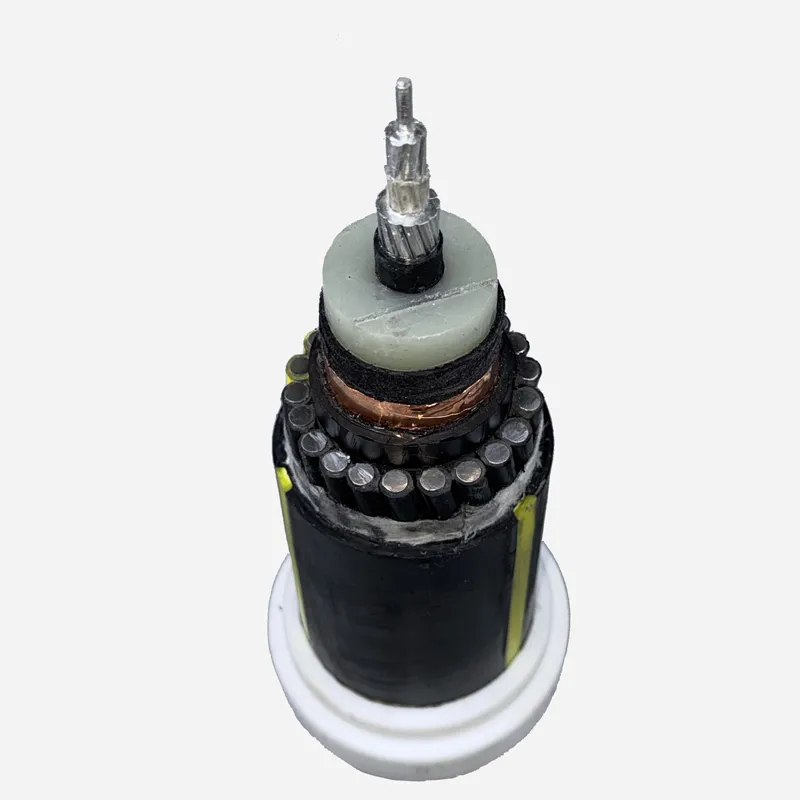

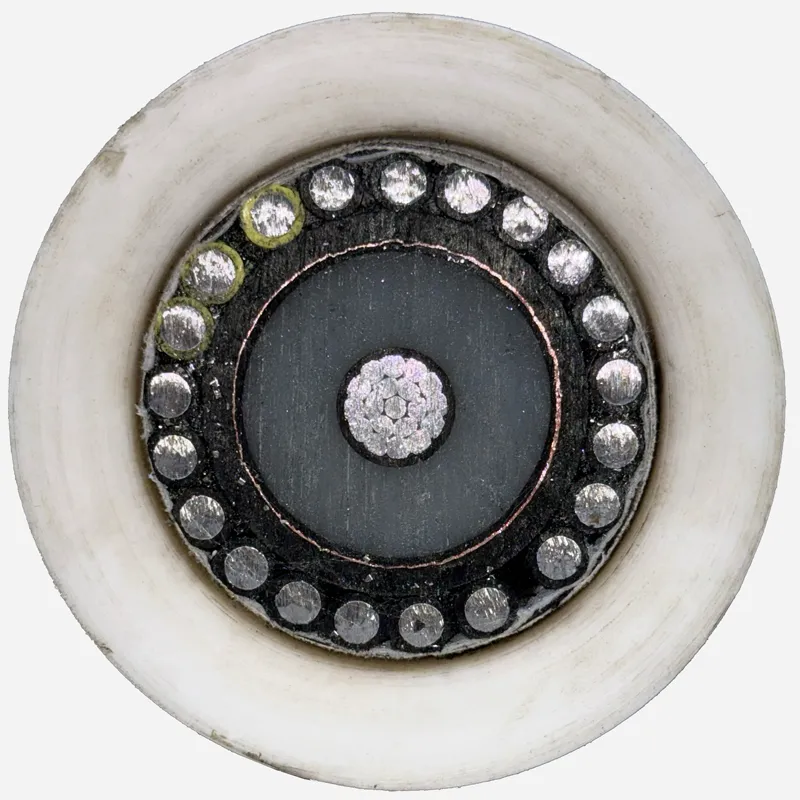

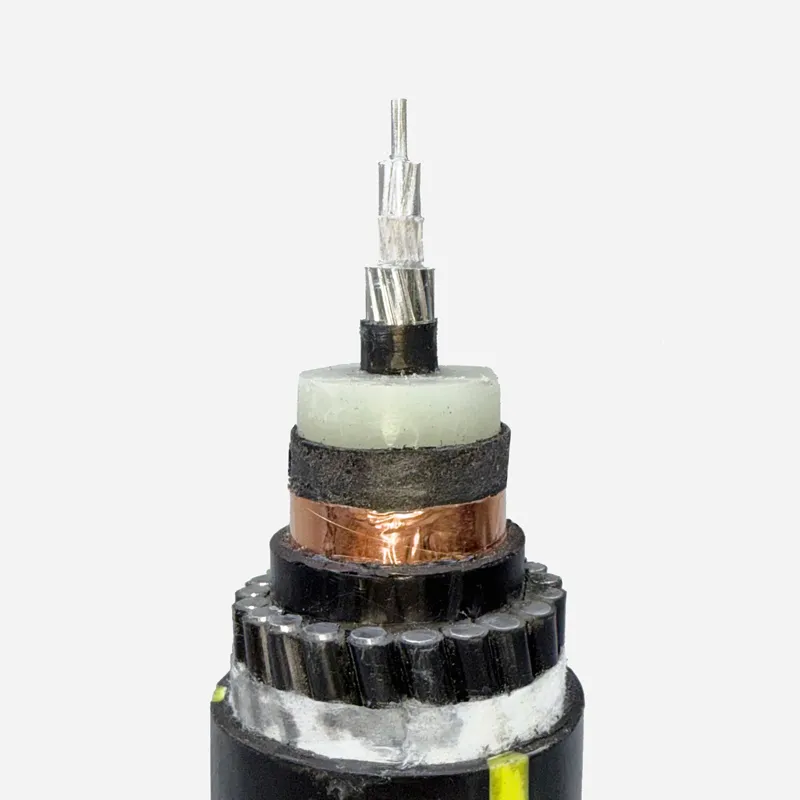

Marine Cable 5-46kV
Marine Cable 5-46kV
Key Technical Innovations:
- Conductor employs stranded circular annealed aluminum alloy conductor with semiconductive water-blocking tape, meeting longitudinal water-blocking requirements;
- Insulation utilizes 35kV heat-resistant 90°C water-tree resistant cross-linked polyethylene insulation material;
- Armor consists of galvanized steel wire containing PE insulation;
- Outer sheath extruded from HDPE containing three yellow color bands.
| Applications |
| Marine cables for shallow waters; offshore wind farm construction; offshore oil and gas exploration and development; coastal island development; |
| Standard |
| ICEA-S93-639 |
Contact Us
| Standard |
| ICEA-S93-639 |
| Semiconductor Material |
| Semiconductive Polyolefin, 90°C |
| Insulation Rating: |
| 100% |
| Insulation Thickness |
| 4.45mm |
| Shielding Material |
| Copper Tape |
| Filler Material |
| Virgin PVC |
| Armor Material |
| Galvanized Steel Wire, Diameter 3.4mm |
| Armor Shielding Material |
| HDPE |
| Outer Sheath |
| HDPE |
| Standard |
| ICEA-S93-639 |
| Armor Shielding Color |
| Black with 3 Yellow Stripes,External Semiconductive Insulation Material |
| Roll Length |
| 500m/roll |
